Delta Loops
- Designs from this site.
- Design ideas from this SOTA one for sale

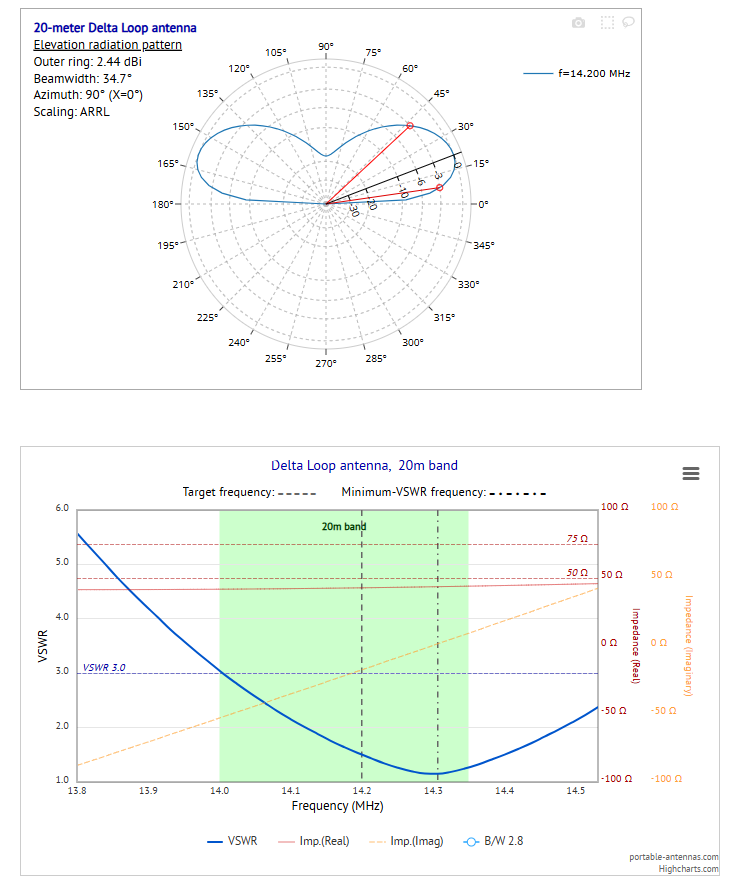

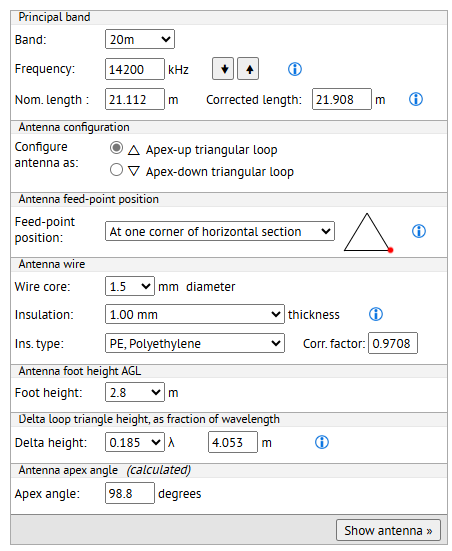

20m
- Length: 21.91 m

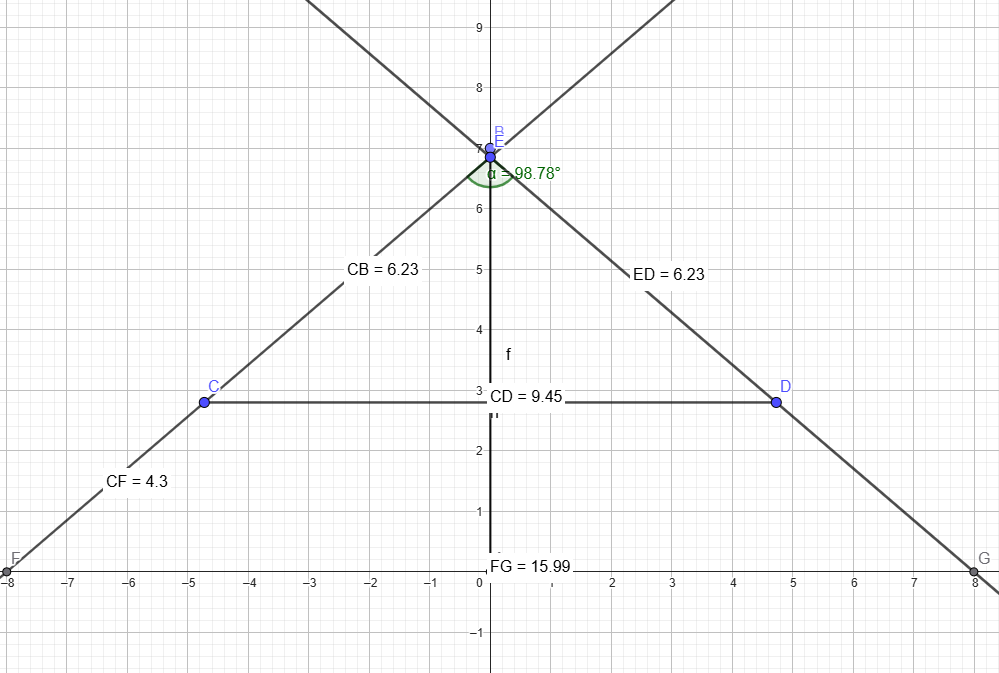

- section 1 and 2 - tops of triangle: 6.223
- section 3 - base - 9.45m
- Horizontal section is 2.8m off ground
- Top is 6.85m off ground
- Angle at top is 98.8 degrees
- Corner fed
15m
- Length: 14.72 m
- section 1 and 2 - tops of triangle: 4.269
- section 3 - base - 6.182 m
- Horizontal section is 2.0 m off ground
- Top is 4.944 m off ground
- Angle at top is 92.8 degrees
- Corner fed
